DESCRIPTION:

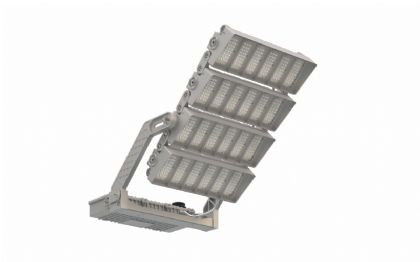

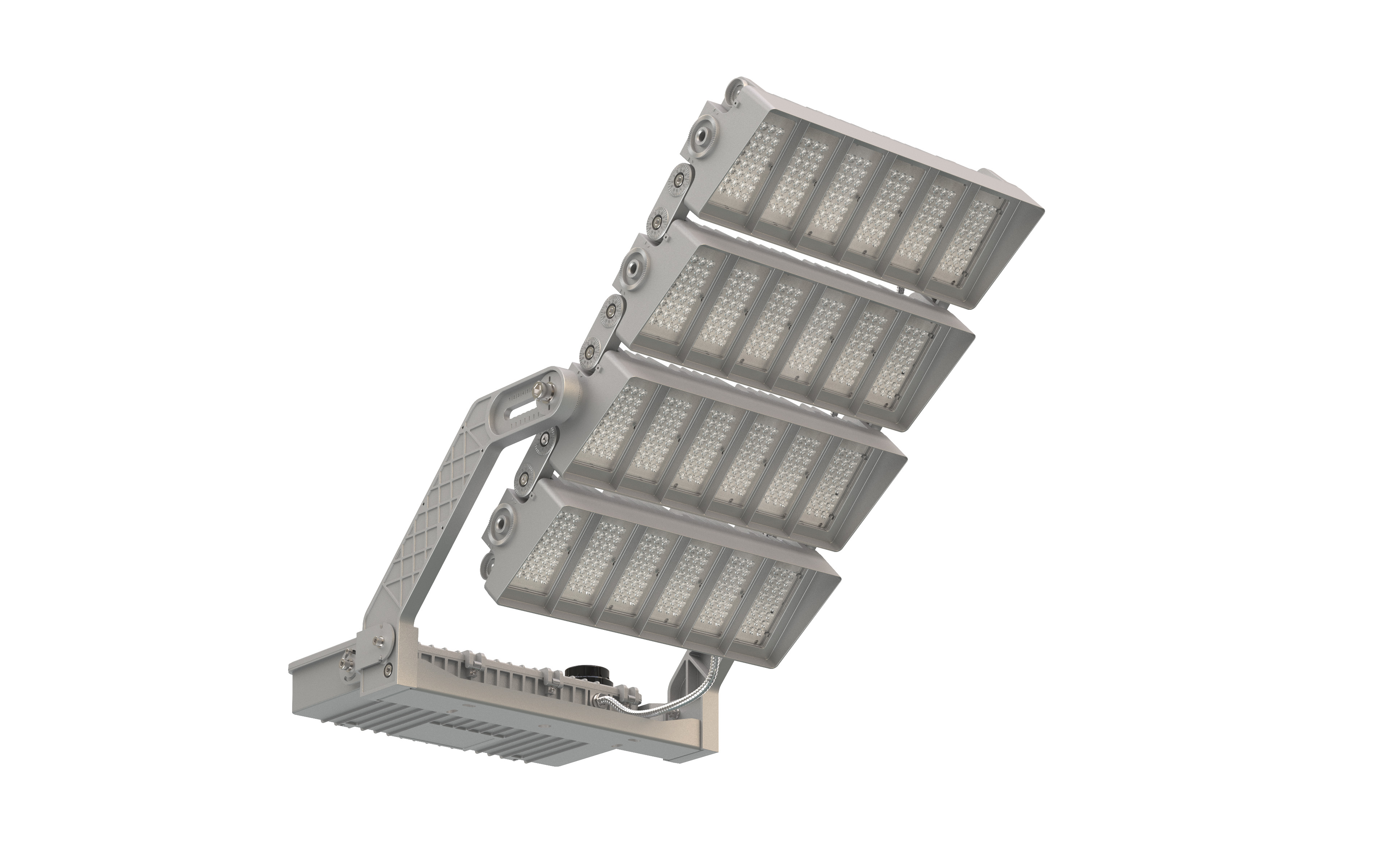

The high-pole modular light is designed for sports venues and multi-purpose venues. It can satisfy the lighting needs for multiple venues occasions.
² Suitable for different styles of venues, providing high-quality lighting while complying with lighting standards for event broadcasts.
² The superior thermal management system and IP66 rating maximize its service life and reduce maintenance costs in both new build and retrofit installations.

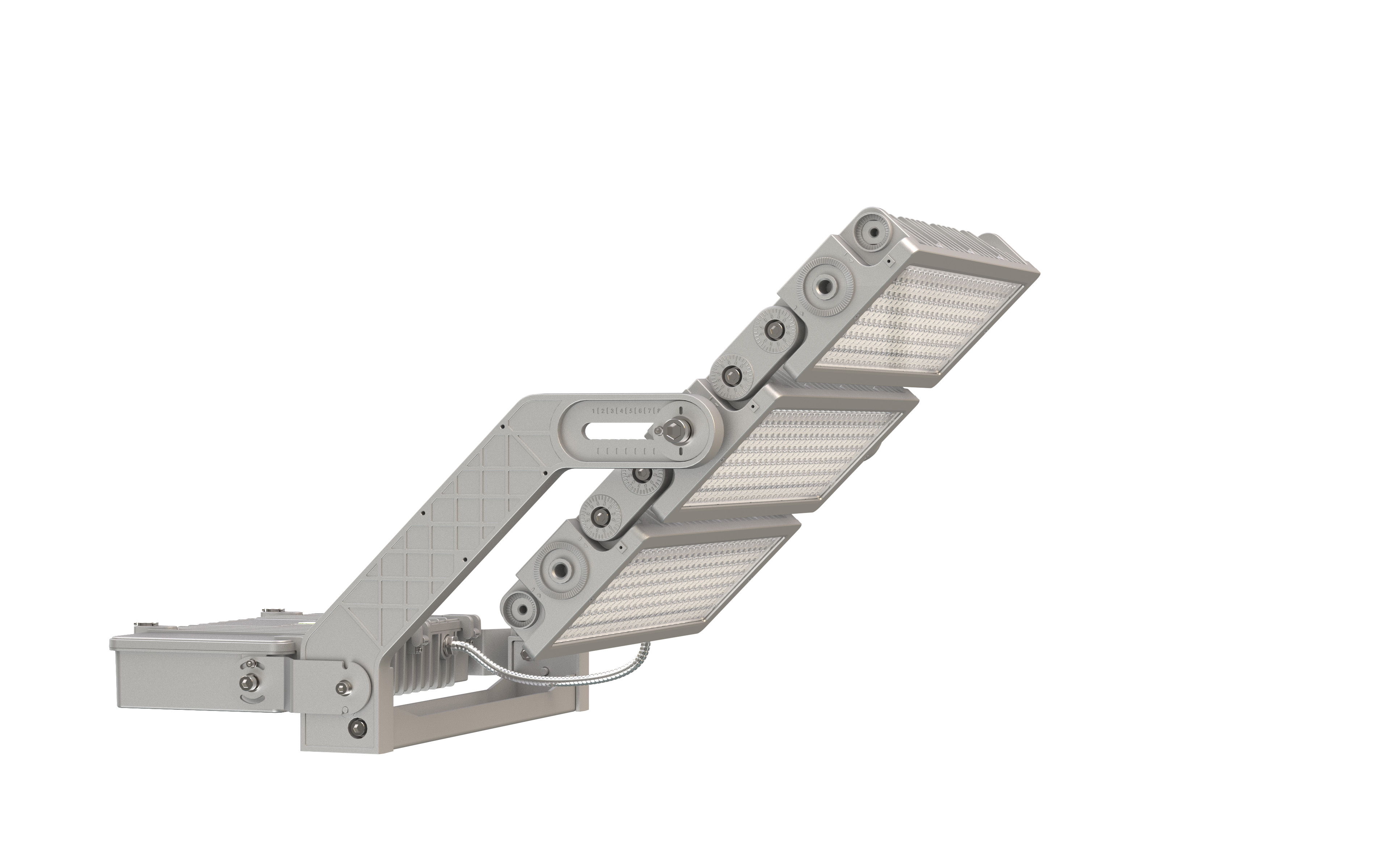

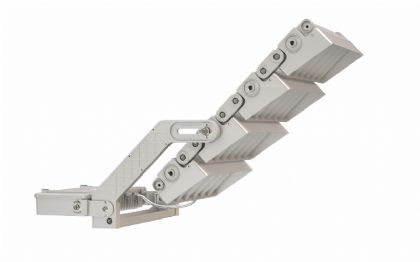

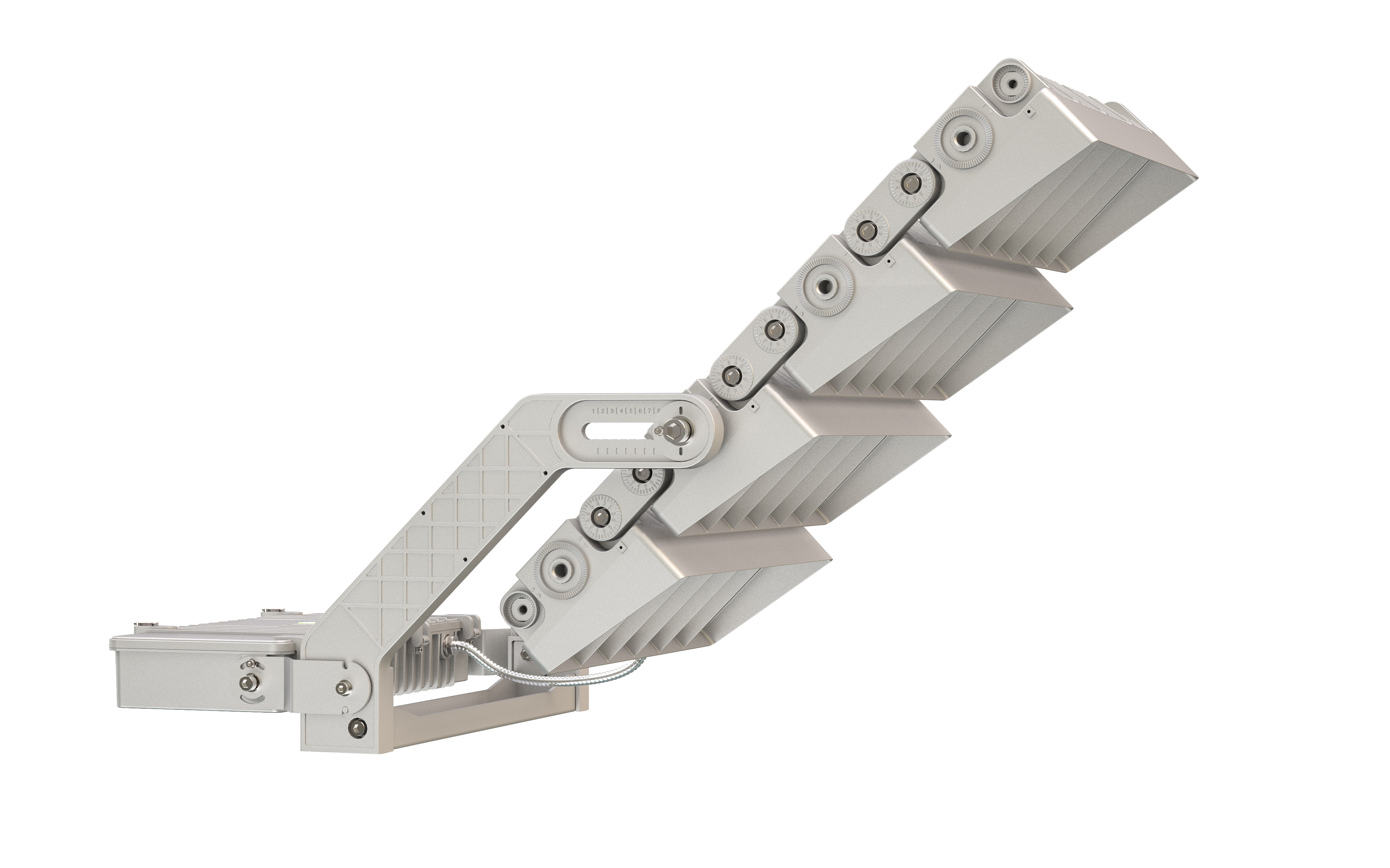

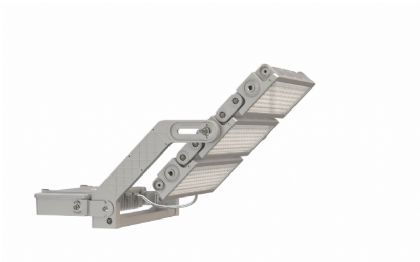

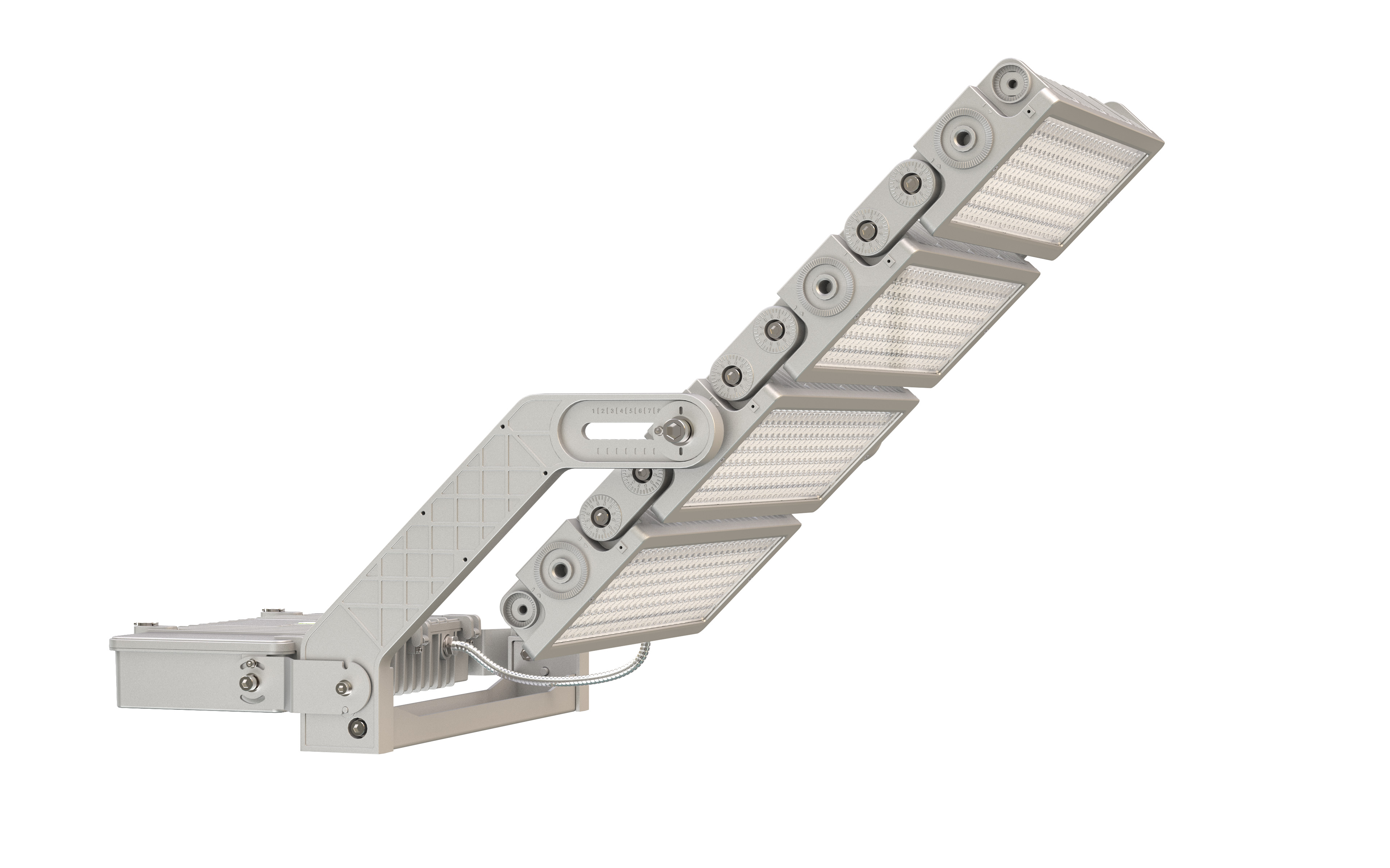

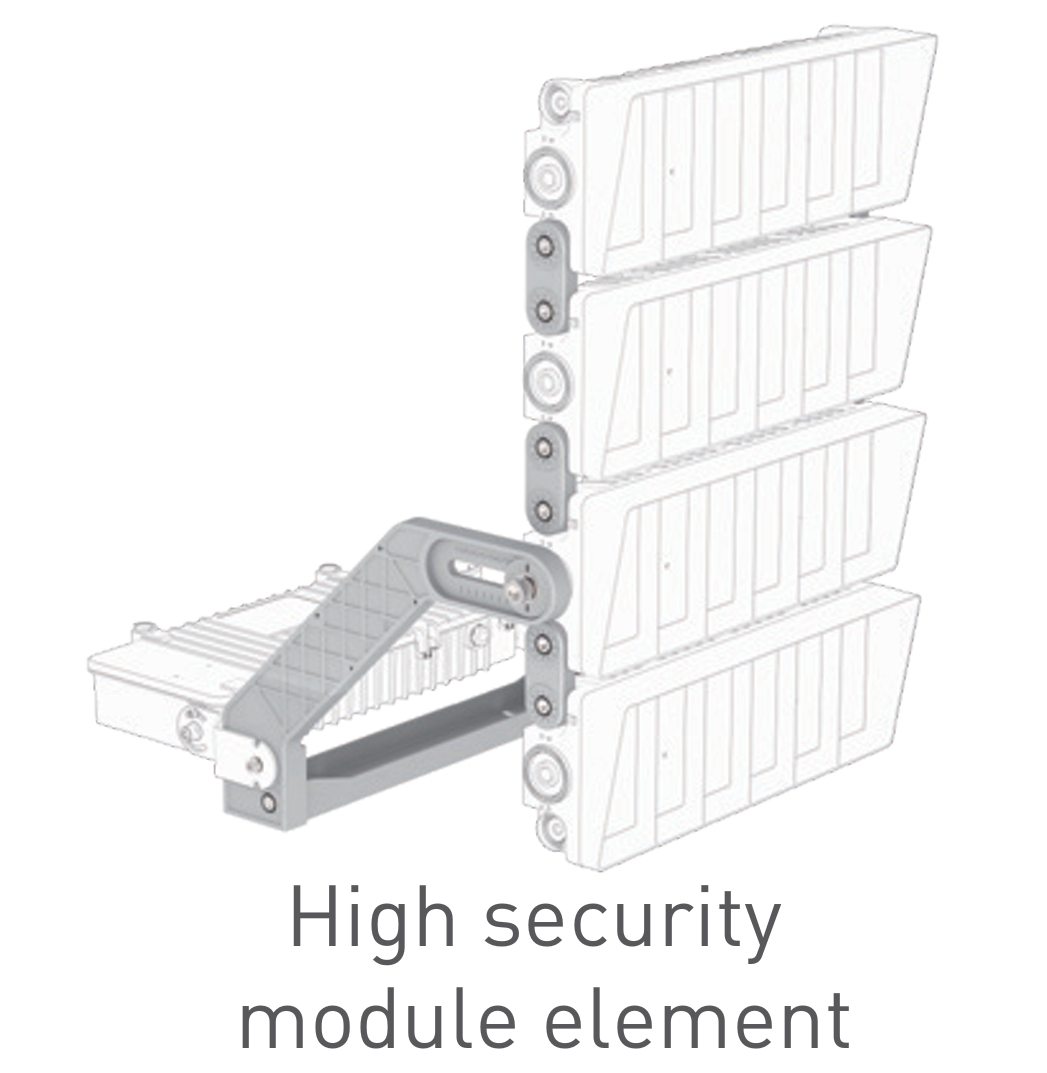

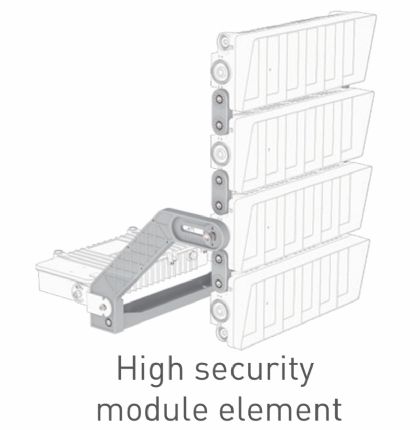

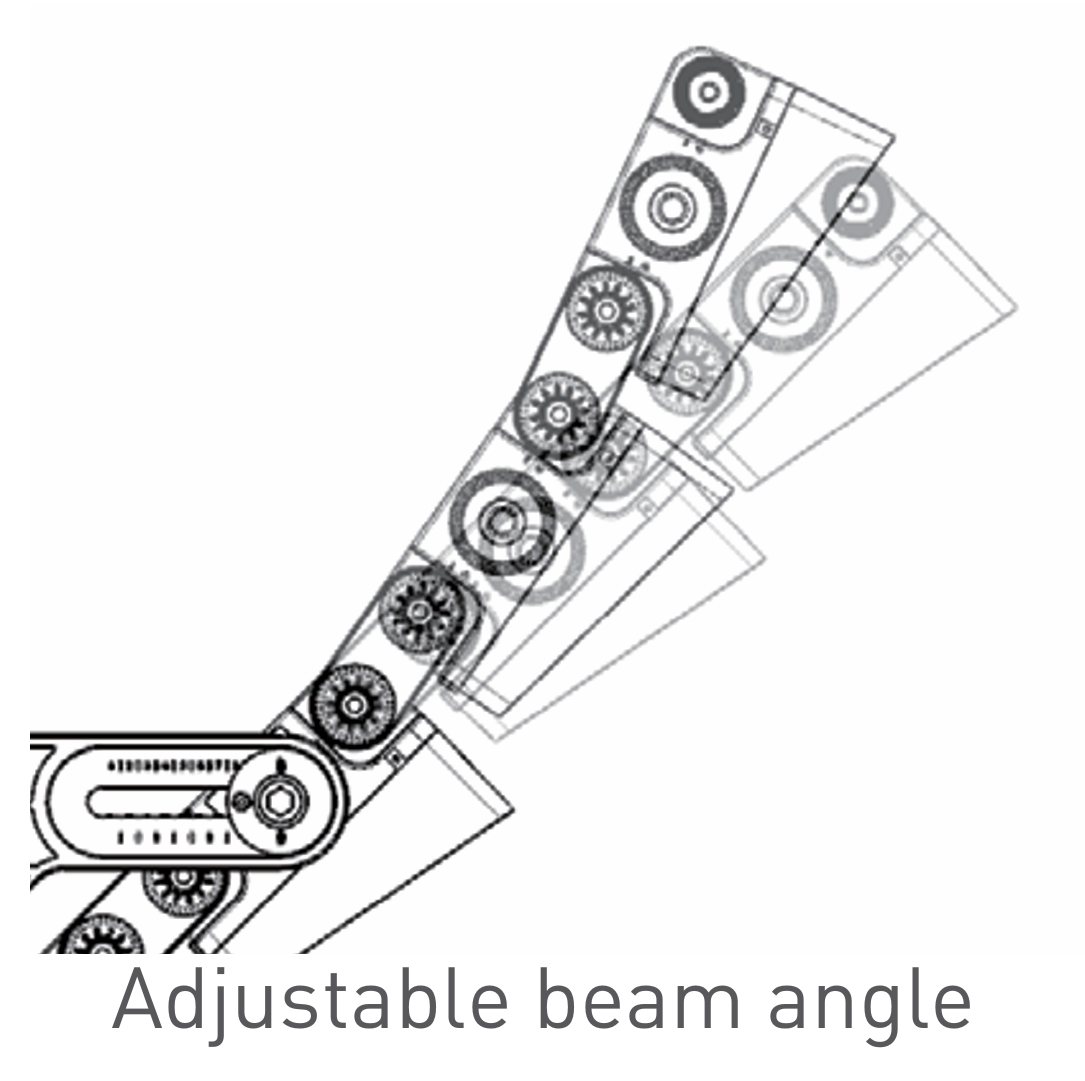

² Multiple modules can be used in combination, and the angle of each module can be adjusted to adapt to different lighting ranges.
² A wide range of symmetrical/asymmetrical optical lenses ensure low glare and excellent lighting uniformity, making it exceed the requirements of various sports venue lighting level standards.
² Wide ambient temperature tolerance range, making it suitable for use in a variety of sports field applications and outdoor lighting applications.
PRODUCT SPECIFICATION
|
WATTAGE |
400W |
800W |
1200W |
1600W |
|
LUMEN |
48000LM |
96000LM |
144000LM |
160000LM |
|
MODUEL PCS |
1PCS |
2PCS |
3PCS |
4PCS |
|
N. W |
17 KG |
22 KG |
30 KG |
36 KG |
|
SIZE(MM) |
518*185*130 |
518*385*130 |
518*585*130 |
518*785*130 |
|
INPUT |
110V~480V (Subject to LED Driver |
|||
|
PF |
>0.95 |
|||
|
SURGE PROTECT |
L/N-G>10KV & L-N>6KV |
|||
|
THD |
<10% |
|||
|
BEAMSPREAD |
10°/15°/30°/50°/P50/P60 |
|||
|
LUMEN EFFICACY |
120~150 LM/W |
|||
|
IP RATING |
IP66 |
|||
|
IK |
IK08 |
|||
|
CCT |
2700K ~ 6500K |
|||
|
CONSTRUCTION |
Aluminum |
|||
